Double Edge Mask Node

../../../_images/compositing_nodes_matte_double-edge-mask.png

Double Edge Mask Node.

The Double Edge Mask node creates a gradient between two masks.

Inputs

Inner Mask
A mask representing the inside shape, which will be fully white.
Outer Mask
A mask representing the outside shape, which will fade from black at its edges to white at the Inner Mask.

Properties

Inner Edge
All
All shapes in the Inner Mask contribute to the gradient, even ones that do not touch the Outer Mask shape.
Adjacent Only
Only shapes in the Inner Mask that overlap with the Outer Mask contribute to the gradient.
../../../_images/compositing_nodes_double_edge_all.png

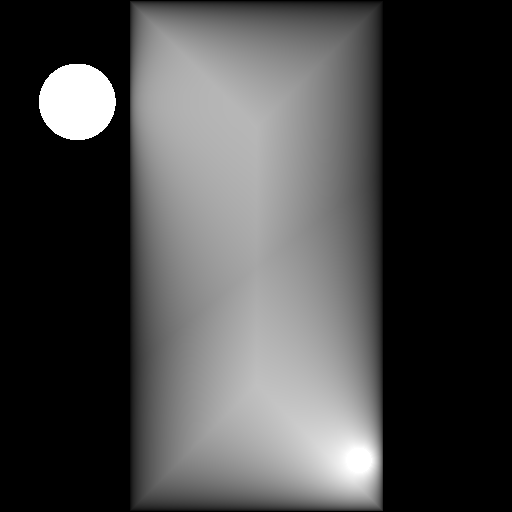

All.

../../../_images/compositing_nodes_double_edge_adjacent.png

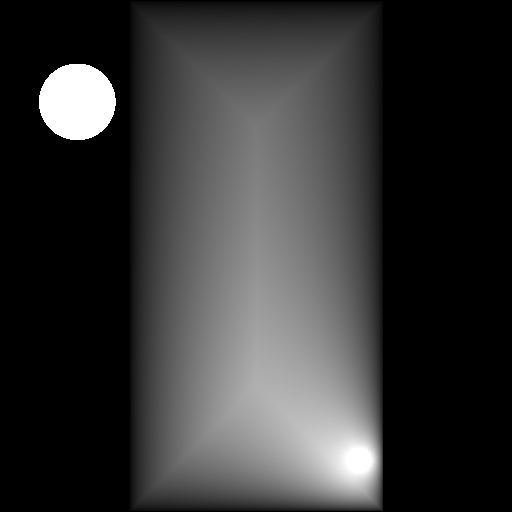

Adjacent Only.

Buffer Edge
Keep In
Parts of the Outer Mask that touch the edge of the image are treated as if they stop at the edge.
Bleed Out
Parts of the Outer Mask that touch the edge of the image are extended beyond the boundary of the image.
../../../_images/compositing_nodes_double_edge_in.png

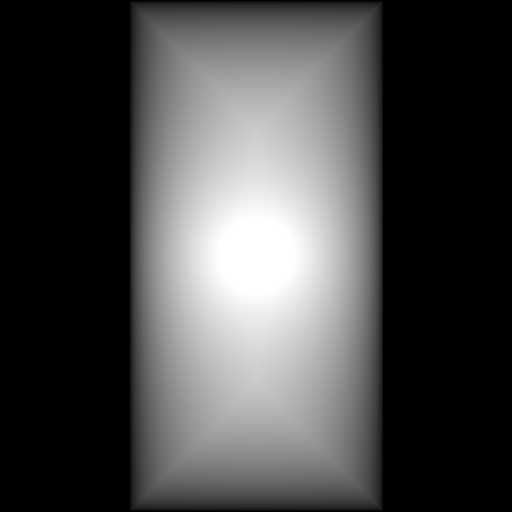

Keep In.

../../../_images/compositing_nodes_double_edge_bleed.png

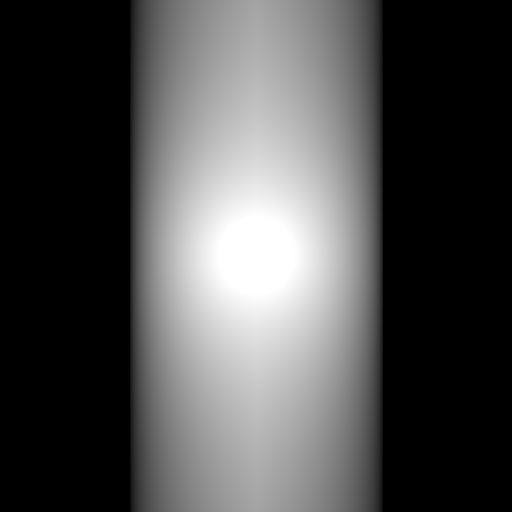

Bleed Out.

Outputs

Mask
Standard mask output.

Example
